T-LED 3 EBX 30M

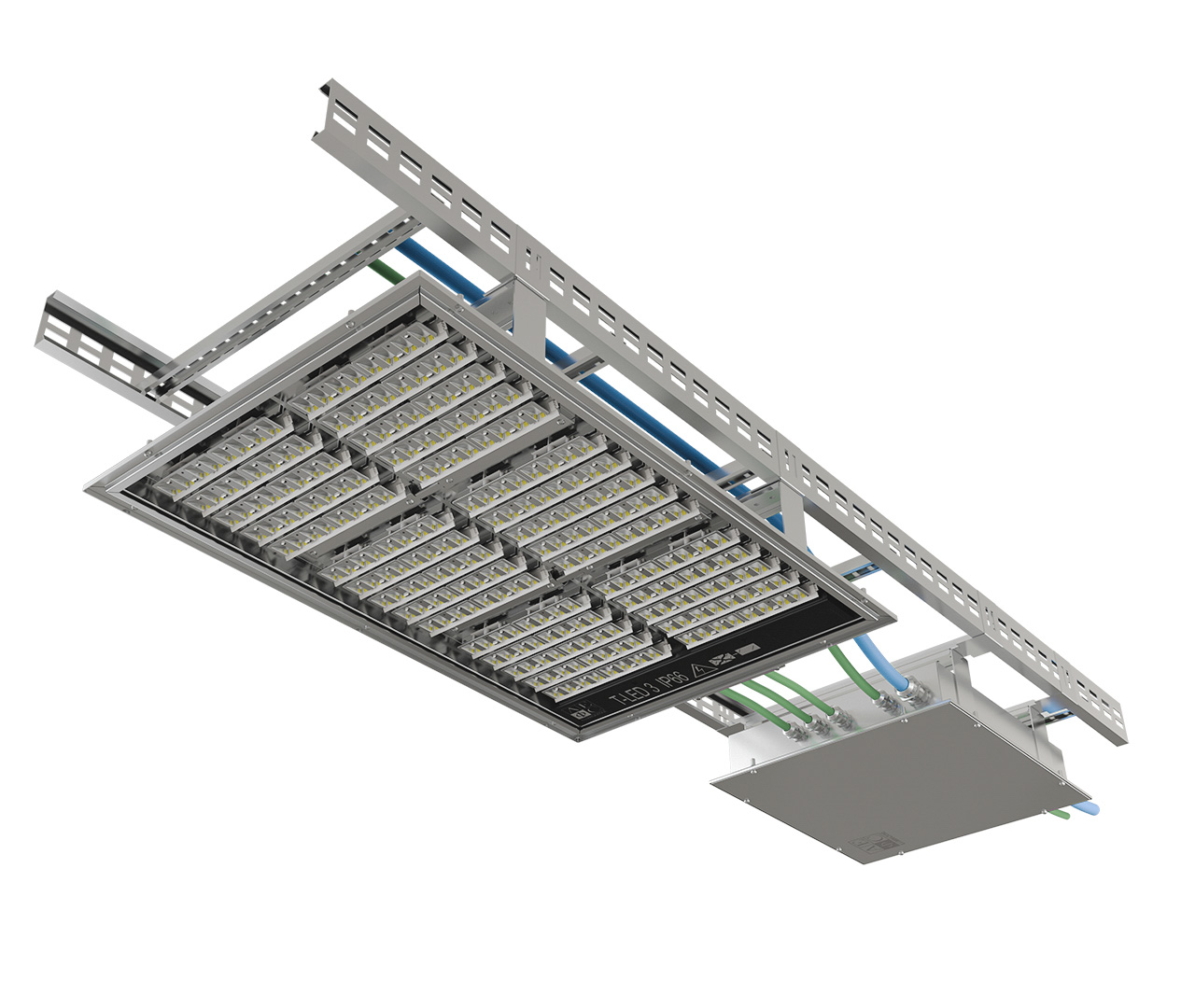

Road tunnels are areas that are particularly prone to smog, humidity and sudden changes in temperature. A correct tunnel lighting fixture must therefore possess technical qualities such as to satisfy international standards and ensure continuous operation of the lighting system, in environments where corrosion phenomena are particularly high. Due to the body made entirely of AISI 316 L anti-corrosion steel, the T-LED3 tunnel floodlight series has been specifically designed to resist the chemical agents of road tunnels, ensuring long-lasting performance.

T-LED3 allows you to create an architecture connected to AEC systems for LED lighting of road tunnels, allowing quick remote management of the system and the ability to automatically vary the luminous flux, limiting waste even more.

Download Files:

AS-6W OPTIC (Asymetrical Type)
SS-6W OPTIC (Symetrical Type)


Applications: Tunnel lighting
Photobiological classExempt group

WeightOptical unit: max 48.5 lbs / 22 kg

                     Control driver box: max 20 lbs / 9 kg

Mounting: STD - Standard
                           LS - Latch system
                           CUS - Mounting can be customized
Power Factor: >0.9 (full load)
Power cable: 12GA
Connector-IP68: Nickel brass M20 x 1.5 / M32x1.5 - control gear box
                                         Nickel brass M20 x 1.5 - optical unit

Optical unit lifetime

(Ta: 77°F/25°C)

330 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
380 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
440 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
>
