Ecorays

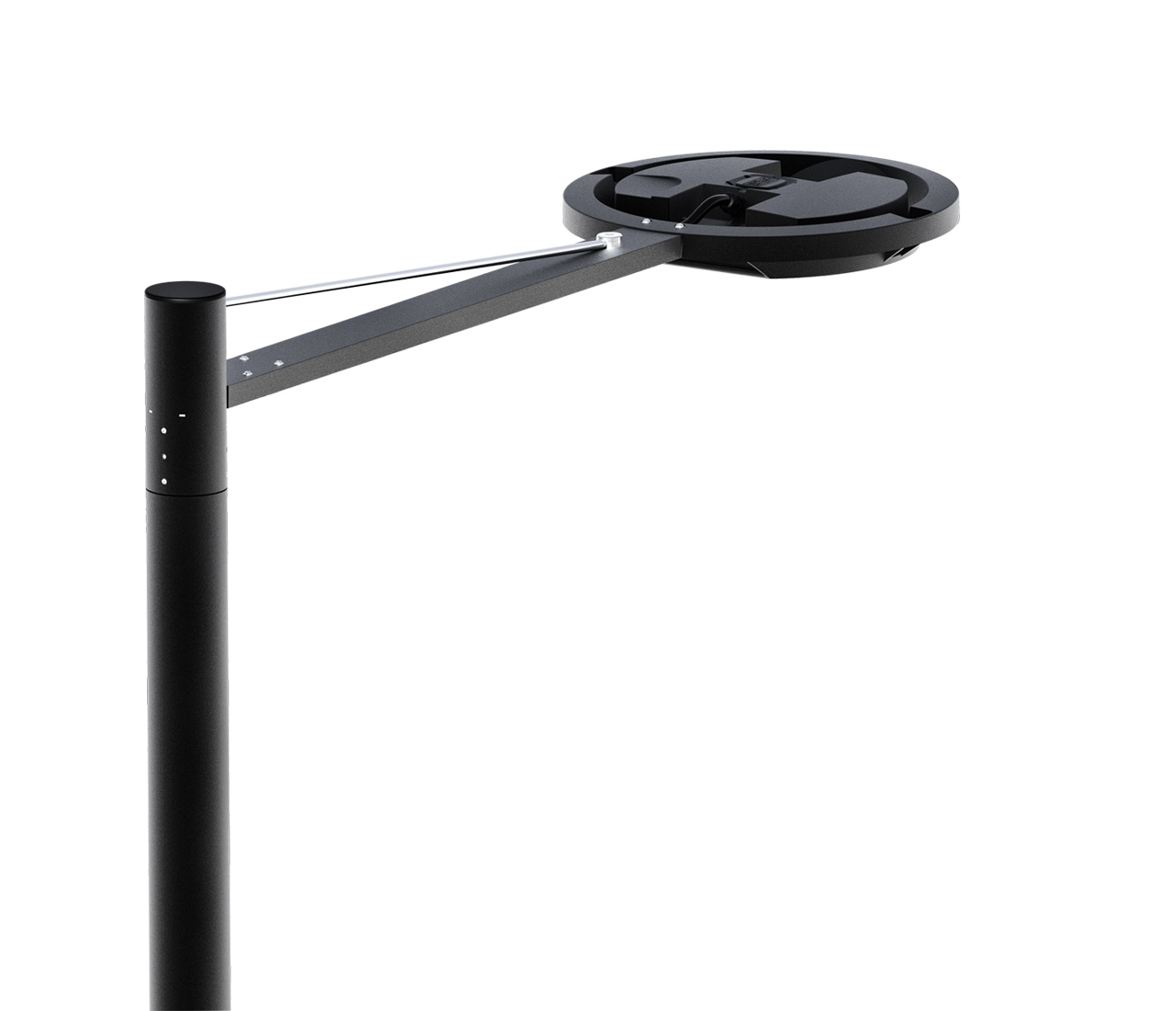

Flat. Soft. Planar. The monolithic element. Simple description of EcoRays. Interactive design par excellence. All thanks to the innovative TRI OPTICS technology. MBT arm with multiple options. Together, they form a magnificent lighting fixture. Simplicity of forms. The aesthetics of construction. The original purists let things speak for themselves.

The EcoRays fixture appeals not only for the impressive side mounted luminaire, but also for its functionality. We all have different requirements. Which is why we designed the EcoRays to adapt with complete individuality. It is designed for parks, streets, sidewalks, urban squares and with its multitude optical systems provides the optimum light comfort at night.

Download Files:

S OPTIC (IES TYPE IV) (IES TYPE)

IES TYPE

STE-M OPTIC (IES TYPE II) (IES TYPE)

IES TYPE

STU-M OPTIC (IES TYPE II) (IES TYPE)

IES TYPE

STU-S OPTIC (IES TYPE II) (IES TYPE)

IES TYPE

STW OPTIC (IES TYPE II) (IES TYPE)

IES TYPE

S05 OPTIC (IES TYPE IV) (IES TYPE)

IES TYPE

STE-S OPTIC (IES TYPE II) (IES TYPE)

IES TYPE

SV2 OPTIC (IES TYPE II) (IES TYPE)

IES TYPE

SV OPTIC (IES TYPE II) (IES TYPE)

IES TYPE

Applications: Street and urban lighting.

Tilt angle: 0°

Weight: 15.4 lbs / 7 kg

EPA: Side: 0.32 ft2 (0.03m2)

Top: 1.83 ft2 (0.17m2)

(Cross Section Surface)

Use Drag coefficient factor - 0.5

Mounting: M2B - 2 3/8" x 4" L (60 mm x 100 mm L)

M3 - 3" x 4" L (76 mm x 100 mm L)

M4 - 4" x 4" L (102 mm x 100 mm L)

Power Factor: >0.9 (full load)

Power cable: H07RN-F a2/3 x 1.5mm2

Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)

Optical unit lifetime

(Ta: 77°F/25°C)

525 mA: L90B10 ≥ 100 000 h

(Including critical failures)

L90 > 100 000 h, TM-21

700 mA: L90B10 ≥ 100 000 h

(Including critical failures)

L90 > 100 000 h, TM-21
