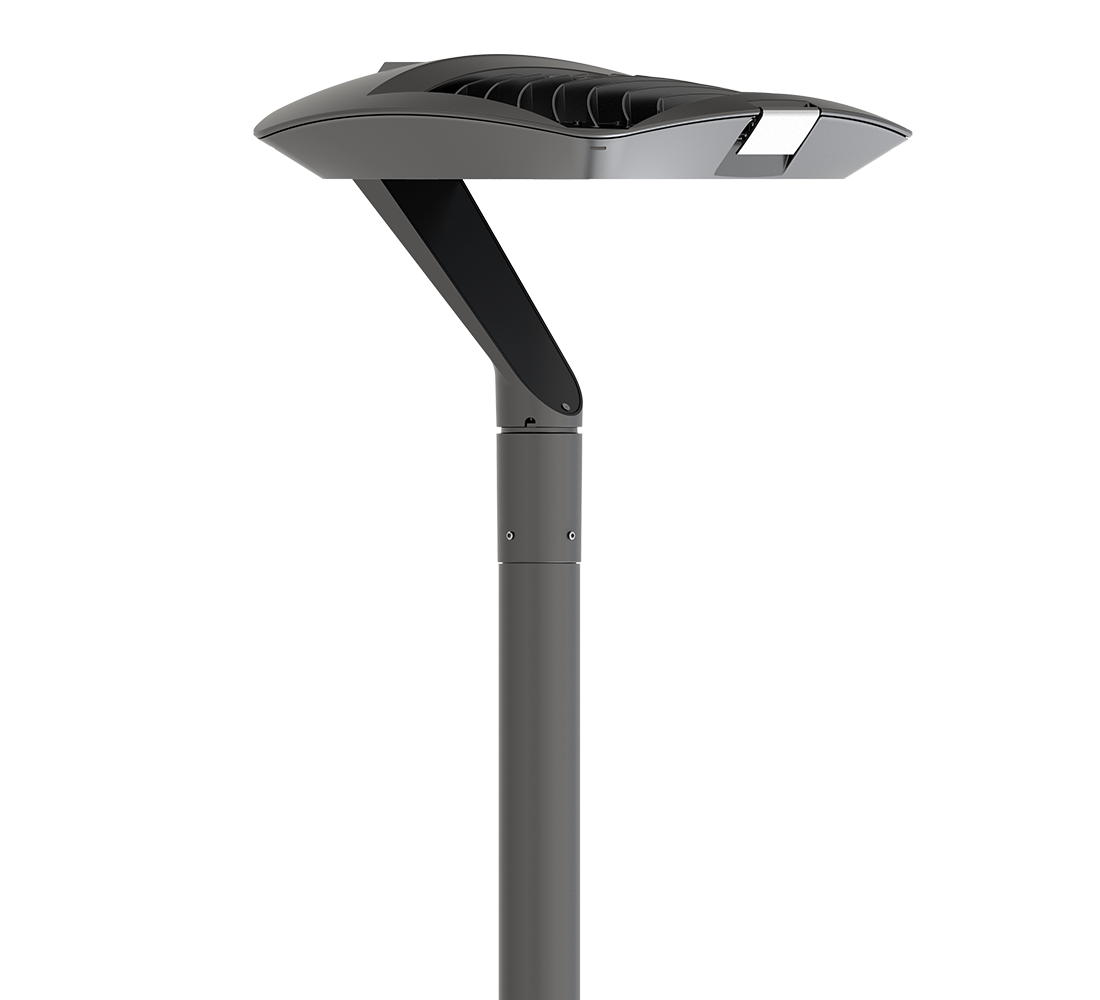

Italo 2 UB TP



Aesthetic design certainly played a significant role in the design process.
The new LED product range is characterized by a defined light-style, as a result of accurate research on forms and light perception.
AEC opens up new frontiers in outdoor lighting, promoting design excellence and optimum performance.
Everything began with a vision – transformed into inspirational Italo lighting products during the intense design process.
Lighting fixture products with a beautiful lighting, based on the technology of lighting specialists of AEC Illumination.
Unique, thoughtful design objects that have something to offer to the world: whether it is to bring a bit of magic to your project or a sense of comfort.
The results could not be more different or surprising.

Download Files:

STE-S OPTIC (IES TYPE II)
STE-M OPTIC (IES TYPE II)
STW OPTIC (IES TYPE II)
STU-S OPTIC (IES TYPE II)
STU-M OPTIC (IES TYPE II)
SV OPTIC (IES TYPE II)
S05 OPTIC (IES TYPE IV)
S OPTIC (IES TYPE IV)
OP-DX OPTIC (IES TYPE III)
OP-SX OPTIC (IES TYPE III)


Applications: Street and urban lighting.
Tilt angle: 0°
Weight: 26.5 Lbs / 12 kg
EPA:   Side: 0.65 ft2 (0.06m2)

               Top: 2.69 ft2 (0.25m2)

(Cross Section Surface)
Use Drag coefficient factor - 0.5

MountingM2B - 2 3/8” x 4 ”L (60 mm x 100 mm L)
Power Factor: >0.9 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)

Optical unit lifetime

(Ta: 77°F/25°C)

525 mA L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
700 mA L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21

>
