T-LED 3 6-8M

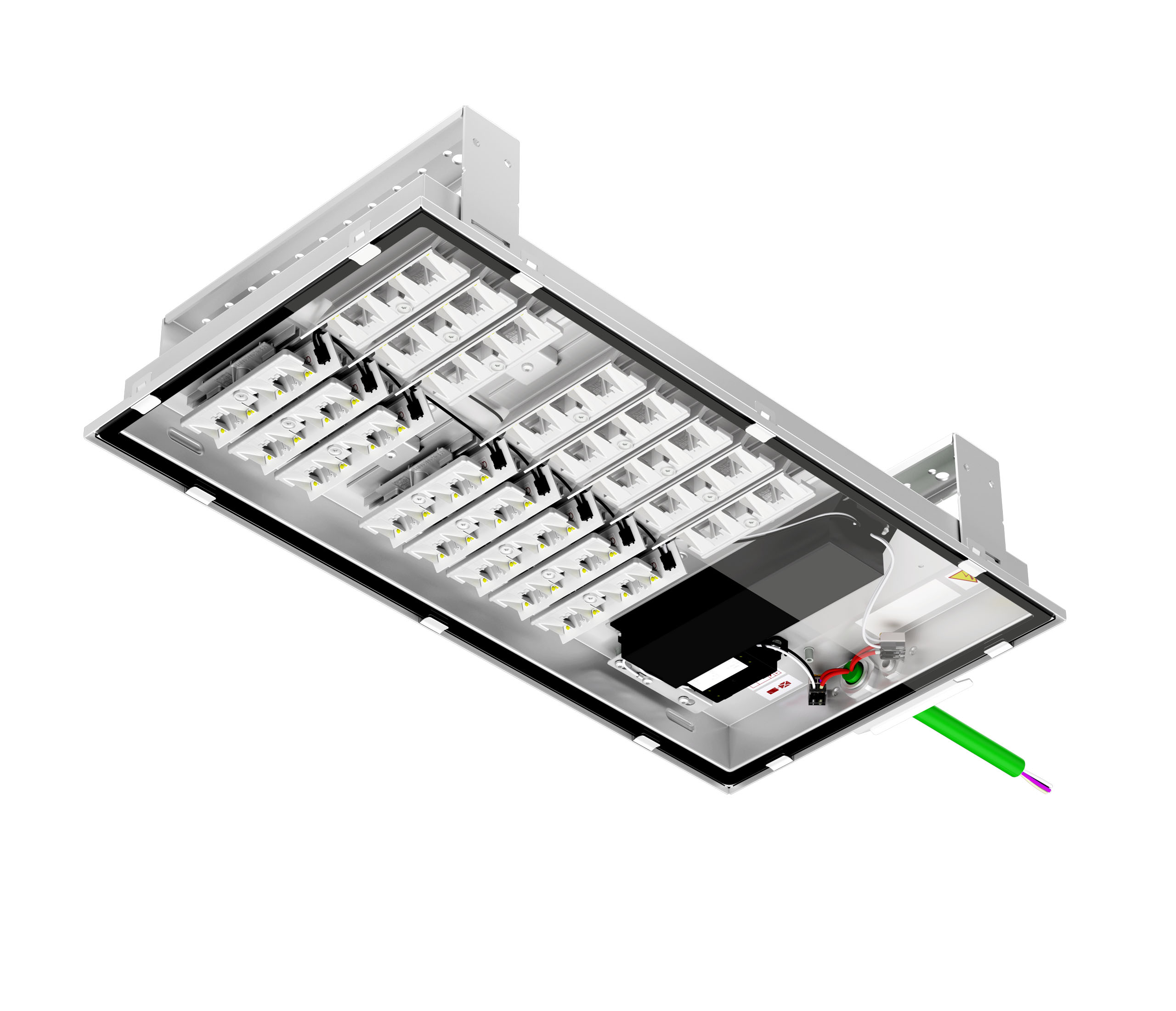

Road tunnels are areas that are particularly prone to smog, humidity and sudden changes in temperature. A correct tunnel lighting fixture must therefore possess technical qualities such as to satisfy international standards and ensure continuous operation of the lighting system, in environments where corrosion phenomena are particularly high. Due to the body made entirely of AISI 316 L anti-corrosion steel, the T-LED3 tunnel floodlight series has been specifically designed to resist the chemical agents of road tunnels, ensuring long-lasting performance.

T-LED3 allows you to create an architecture connected to AEC systems for LED lighting of road tunnels, allowing quick remote management of the system and the ability to automatically vary the luminous flux, limiting waste even more.

Download Files:

Applications: Tunnel lighting
Photobiological classExempt group

Weight: Optical unit: max 24.2 lbs / 11 kg

Mounting: STD - Standard
                           LS - Latch system
                           CUS - Mounting can be customized
Power Factor: >0.9 (full load)
Power cable: 12GA
Connector-IP68: Nickel brass M20 x 1.5 / M32x1.5 - control gear box
                                         Nickel brass M20 x 1.5 - optical unit

Optical unit lifetime

(Ta: 77°F/25°C)

440 mA L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
