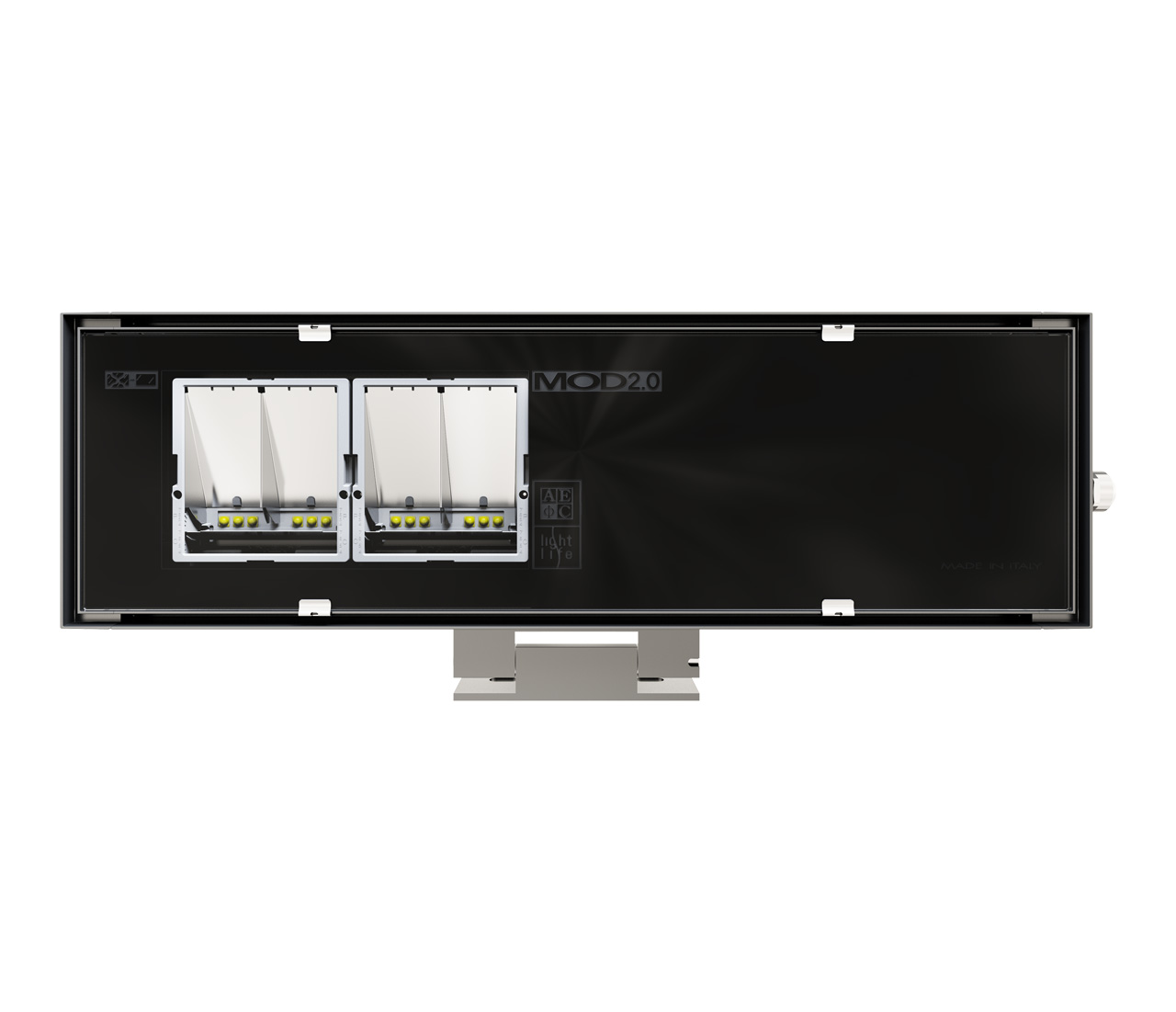

MOD Pro 535

The wide series offers excellent levels of performance, creating the right atmosphere for all the urban contexts. Its design assures a coherent and elegant identity to the urban city.

MOD PRO is suitable for different installations and it is available with colour temperature 4000K and optional 3000K or 5700K. The flat tempered glass assures high transparency and resistance. MOD 2.0 PRO is a very multifunctional floodlight, made by extruded aluminium with IP66 protection degree. The floodlight is available in two different lengths: 535mm and 650mm.

Download Files:

ASC-4W OPTIC (NEMA 6H x 6V)
NEMA
ASC-5W OPTIC (NEMA 6H x 5V)
NEMA
ASC-6W OPTIC (NEMA 6H x 5V)
NEMA
ASC-7W OPTIC (NEMA 6H x 5V)
NEMA
ASP-4N OPTIC (NEMA 6H x 4V)
NEMA
ASP-4W OPTIC (NEMA 6H x 4V)
NEMA
ASP-5N OPTIC (NEMA 6H x 4V)
NEMA
ASP-5W OPTIC (NEMA 6H x 4V)
NEMA
ASP-6N OPTIC (NEMA 5H x 5V)
NEMA
ASP-6W OPTIC (NEMA 6H x 5V)
NEMA
ASP-7N OPTIC (NEMA 5H x 5V)
NEMA
ASP-7W OPTIC (NEMA 6H x 5V)
NEMA
STE-M OPTIC (TYPE II)
IES TYPE
STU-M OPTIC (TYPE II)
IES TYPE
STU-S OPTIC (TYPE II)
IES TYPE
STW OPTIC (TYPE II)
IES TYPE
S05 OPTIC (TYPE IV)
IES TYPE
STE-S OPTIC (TYPE II)
IES TYPE
SV OPTIC (TYPE II)
IES TYPE



Applications: Street, urban and architectural lighting.

Tilt angle: From: -90° to +90°
Weight: 19.8 Lbs / 9 kg
EPA: Side: 0.54 ft2 (0.05m2)
             Top: 1.4 ft2 (0.13m2)
(Cross Section Surface)
Use Drag coefficient factor - 1.2

Mounting: Wall mounting
Power Factor: >0.95 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)

Optical unit lifetime
(Ta: 77°F/25°C)
525mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
700mA: L90B10 ≥ 100 000 h
(Including critical failures)
L80 > 100 000 h, TM-21
