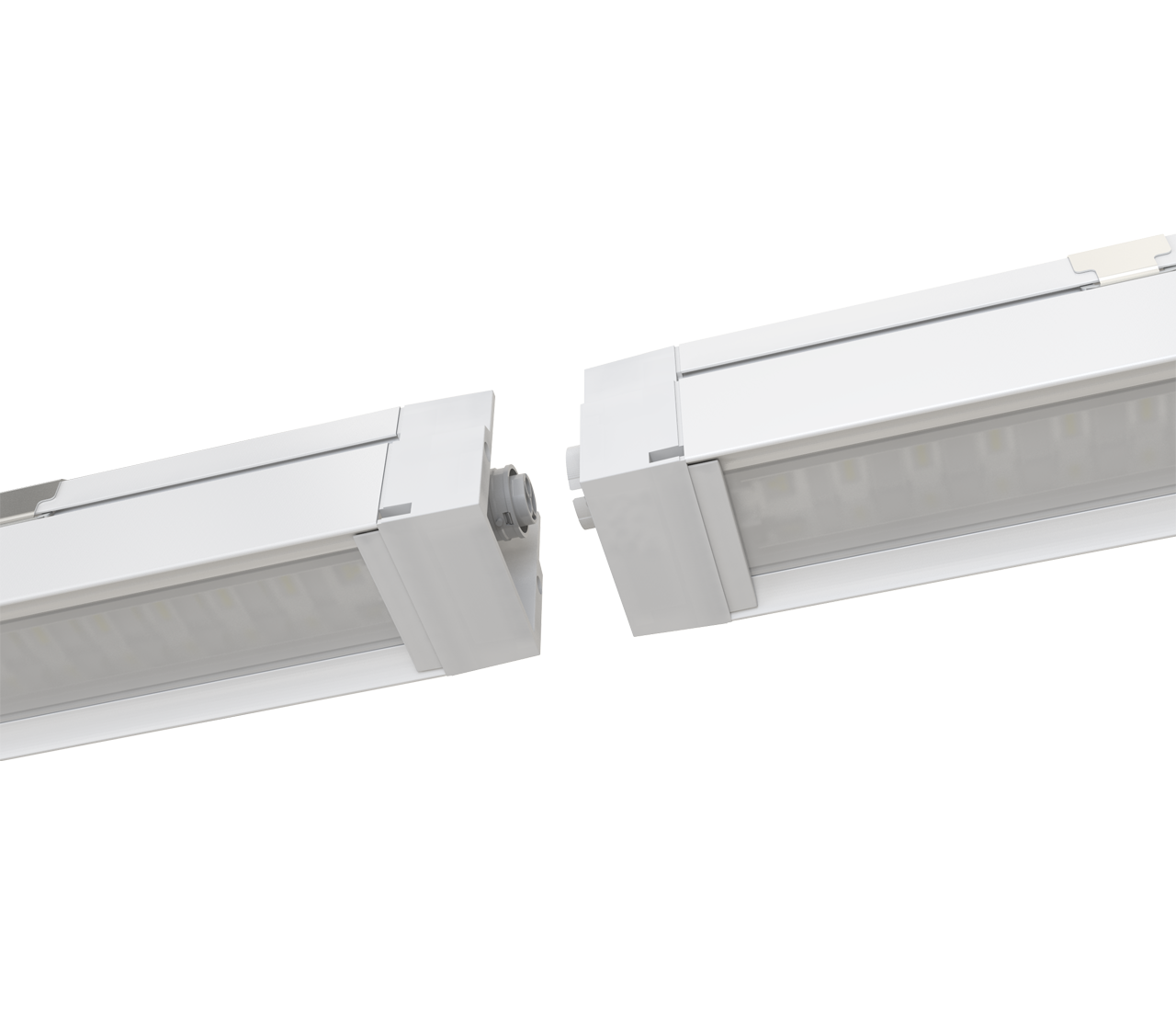

GA15

The GA series is available in two lengths (1,2 m and 1,5 m) and it represents the right solution for a lot of installations. In fact, the series is perfect for commercial and industrial lighting. Equipped with specific LEDs, it becomes also the best eco-friendly solution for modern horticulture plants.

The GA series represents the right solution for industrial and commercial applications. Due to the material choice and lighting characteristics, the GA series is a best in class product. The aluminium body, PMMA screen and special additional optics composed of aluminum reflectors make the product ideal for areas where safety, reliability and high lighting performance are top priorities. GA is IP66 and it is possible to install in outdoor areas also. The aluminium reflector maximizes the optical efficiency, optimizing the visual comfort in any applications.

Download Files:

LB-AS2 OPTIC (Asymmetrical Type)
LIGHT DISTRIBUTION
LB-L OPTIC (Symmetrical Type)
LIGHT DISTRIBUTION
LB-M OPTIC (Symmetrical Type)
LIGHT DISTRIBUTION



Applications: Indoor lighting.
Tilt angle: 0°
Weight: 13.2 lbs  / 6 kg
EPA:   Side: 0.09 ft2 (0.01m2)

               Top: 1.03 ft2 (0.10m2)

(Cross Section Surface)
Use Drag coefficient factor - 0.5

Mounting WM - Wall mounting
                           SP - Suspended
Power Factor: >0.9 (full load)
Power cable: H07RN-F a2/3 x 1.5mm2
Connector-IP68: Cable Dia. 0.27”-0.39” (7mm-10mm)

Optical unit lifetime

(Ta: 77°F/25°C)

L90B10 ≥ 100 000 h
(Including critical failures)
L90 > 100 000 h, TM-21
